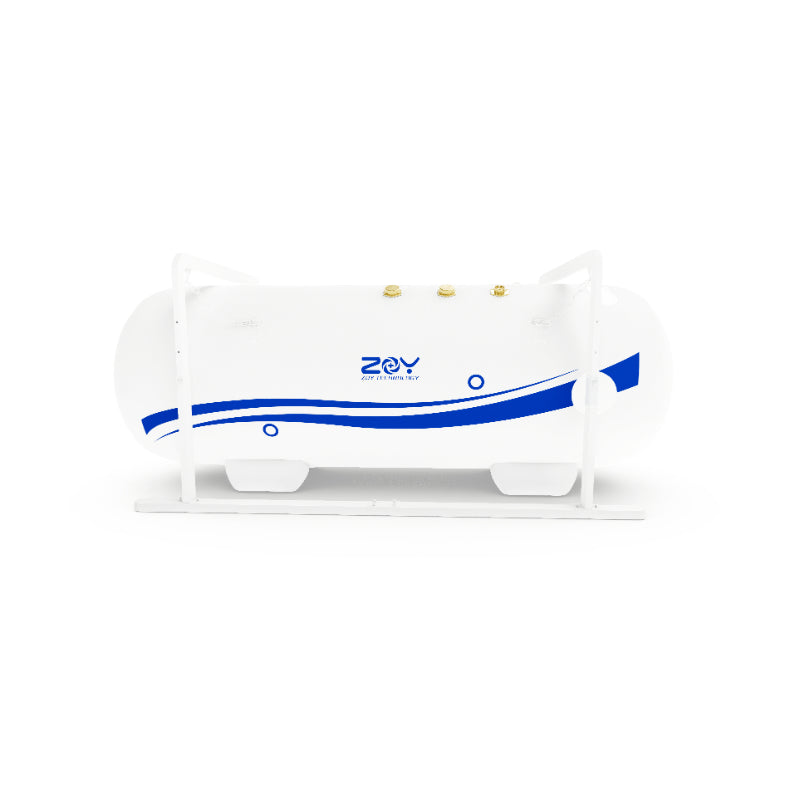

Zoy S700 S800 S900 Soft-Shell Pressurized Chamber System

Product Overview

The Zoy S705, S805, and S905 are soft-shell, lying-style pressurized chambers. Each model is designed to operate at mild pressure levels up to 1.5 ATA and is constructed using reinforced TPU material with integrated steel structural components.

These chambers are configured for horizontal, single-user use and are intended for indoor installation according to manufacturer specifications.

Available Models & Dimensions

Chamber Construction

1. Reinforced TPU chamber material

2. Integrated steel structural components

3. Internal pressure gauge

4. External pressure gauge

5. Automatic pressure-relief valves

6. Manual pressure-release valve

7. Reinforced pipe connection ports

8. Multi-layer zipper sealing system

9. Transparent viewing windows

Oxygen & Air System

Oxygen Concentrator

1. Oxygen flow rate: 5 LPM standard (10 LPM optional on select configurations)

2. Oxygen purity: 93% ±3%

3. Power consumption: 550 W

4. Voltage: 110V / 220V AC, 50/60 Hz

Air Compressor & Cooling

1. Operating pressure range: 0.13–0.15 MPa

2. Airflow capacity: approximately 87–118 LPM

3. Cooling power: 400 W

4. Oil-free air compressor with integrated cooling

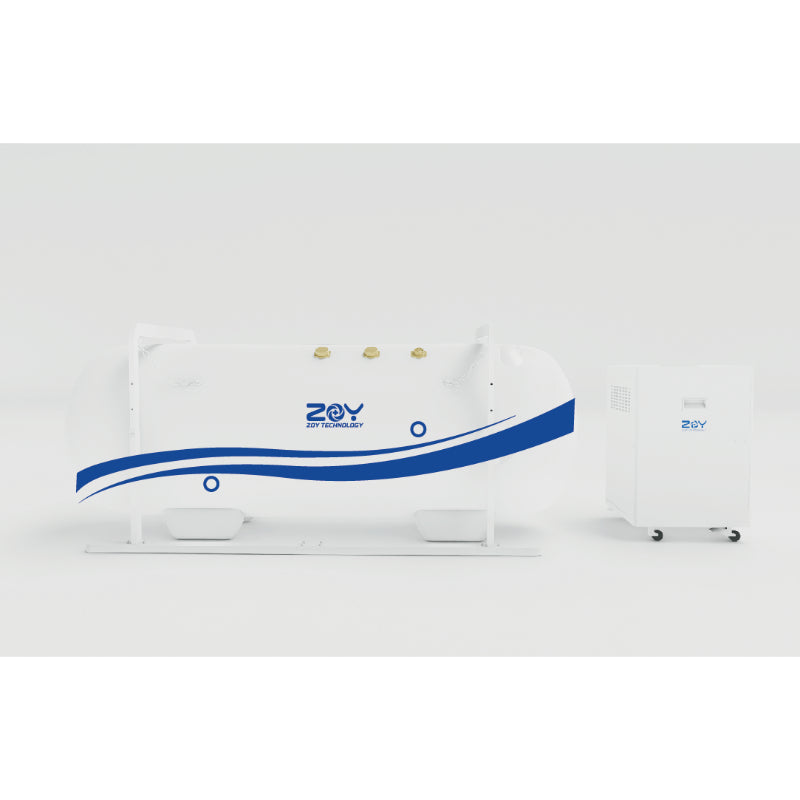

Integrated System

HMO-10 Integrated System

1. Oil-free air compressor

2. 10 LPM oxygen concentrator

3. Integrated cooling system

4. PLC-controlled touch-panel interface

5. Synchronized system operation

Included Features

1. Internal and external pressure monitoring

2. Automatic pressure-relief valves

3. Manual pressure-release valve

4. Oil-free air delivery system

5. Integrated cooling components

6. Touch-panel control interface on supported configurations

Disclaimer

This product is equipment only. It is not a medical device and is not intended for diagnosis, treatment, cure, mitigation, or prevention of any disease or medical condition. Do not use this product for medical purposes. Refer to manufacturer documentation for setup, operation, and safety instructions.
